Multipurpose Injection Training Arm

Brand: Koken
SKU LM-074

Three different injection techniques-intramuscular injection, hypodermic injection, and Ⅳ injection-can be practiced with a single model. Moreover, Ⅳ injection can be practiced in the median antebrachial vein and opisthenar vein, allowing a total of four different injection techniques to be practiced.


  • Silicone is used in the skin and other main parts, and so the look, feel, and puncture sensation are similar to those with a real human body, resulting in more realistic practice.

  • Since four different techniques can be practiced with a single model, it is no longer necessary to use several models as in the past and setup and cleanup/re-storage times are reduced.

  • With a movable shoulder, elbow, and wrist, a realstic body position for each technique can be reproduced.

  • The skin (silicone) can withstand many punctures without leaving visible needle holes, and so can be used for a large number of practices.

  • Blood can be removed with a vacuum blood collection tube or syringe.
    ?Recommend using a needle smaller than 21G.



Sturucture of the blood vessel




The median antebrachial vein



? Silicone gel part

The mock blood vessel is enclosed in silicone gel. This structure makes it possible to simulate the feeling that the blood vessel has slipped away or been punctured when a needle is inserted.



? Mock blood vessel

The mock blood vessel makes visual examination and palpation of the blood vessel easier than the blood vessel in the silicone gel part ?.

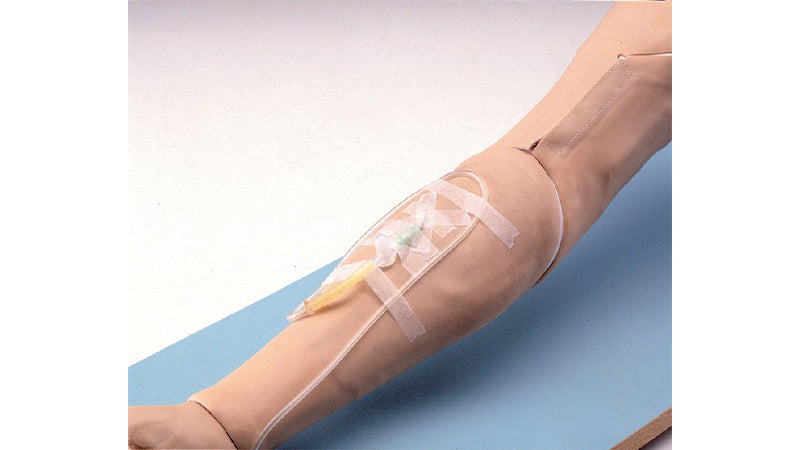

Securing a needle



The skin provides a better adhesive surface for tape than previous skins, making it possibly to fix the needle securely in place.

(The skin is made of silicone rubber.)

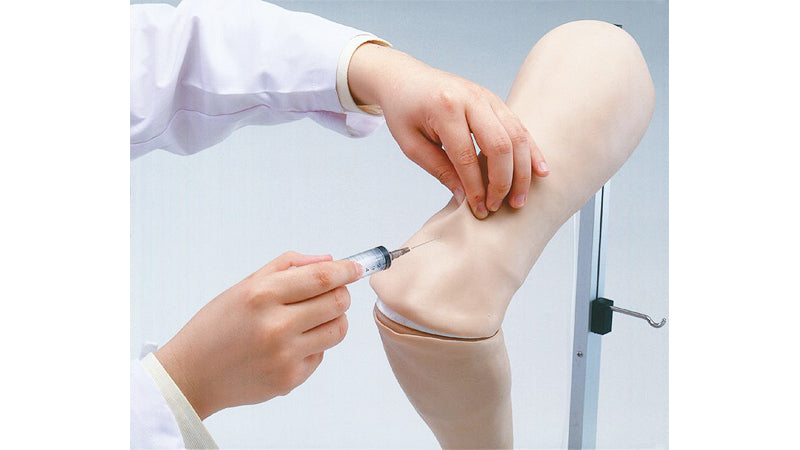

Hypodermic injection



  • The injection site can be ascertained.

  • The injection site can be confirmed with realistic frame work (bone).

  • The sensation provided when injecting via a needle is similar to that provided by real human skin.

  • A series of techniques such as hypodermic needle injections of medicine can be practiced.

  • Injected liquid can be discharged through a drainage tube.

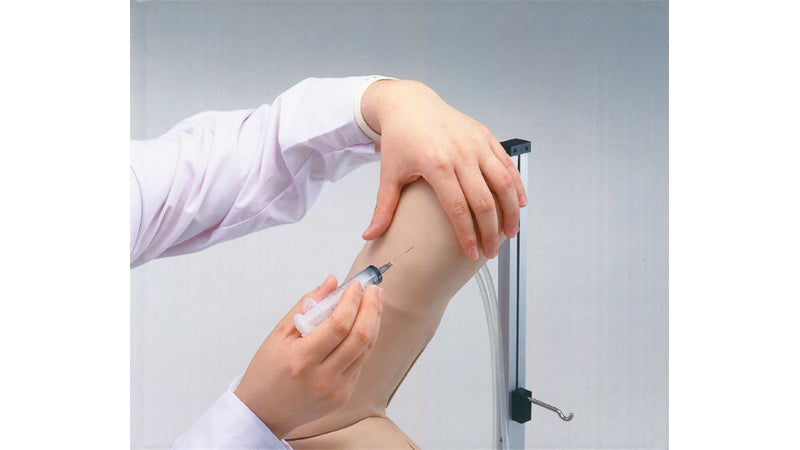

Intramuscular Injection



  • The injection site can be confirmed with realistic frame work (bone).

  • The sensation provided when injecting via a needle is similar to that provided by real human skin.

  • A series of techniques such as hypodermic needle injections of medicine can be practiced.

  • Injected liquid can be discharged through a drainage tube.

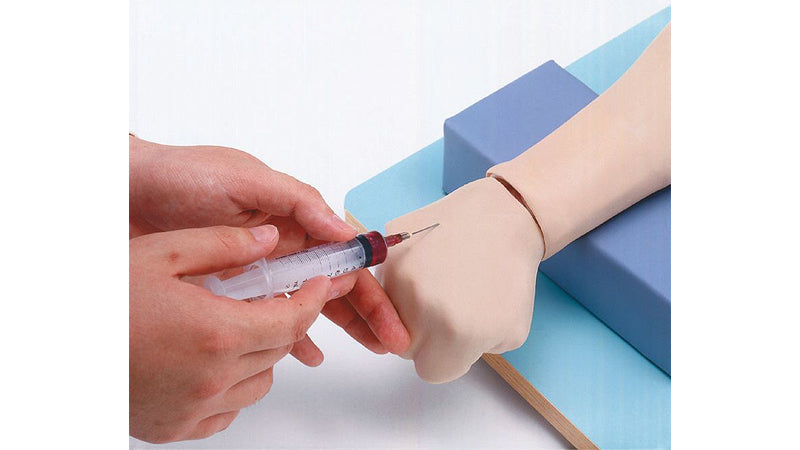

? (Intravenous) Injection



  • Vein can be confirmed visually from the surface of skin.

  • Blood vessel tube is covered with silicone gel and this makes it feel more like real human skin.

  • Above does not apply to opisthenar injection.

  • With special coating on the silicone skin, surgical tape can be attached to the skin.

  • A series of techniques such as hypodermic needle injections of medicine can be practiced.

  • Injection site and skin can be replaced easily.

  • Simulated blood has color and viscosity similar to that of real blood.

  • Simulated blood can be easily washed off with water.

  • Simulated blood circulation is easily performed by manual operation.





Hypodermic injection



Intramuscular Injection



? (Intravenous) Injection




Arm











Size Approx. 63(L) × 10(W) × 11(H) cm
Weight Approx. 3.0 kg




Stand











Size Approx. 60(L) × 27(W) × 68(H) cm
Weight Approx. 2.0 kg




















































? Main Body 1
? Arm skins 3 parts
? Irrigator 2
? Pinch cock 2
? Simulated blood (500ml) 1
? Elbow rest 1
? Syringe 50 ml 1
? Drainage tube 1ml 1
? Stand 1
? Storage bag 1
? Baby powder 1
