  • Inserting the injection needle into an area other than the correct injection site causes the alarm to sound.

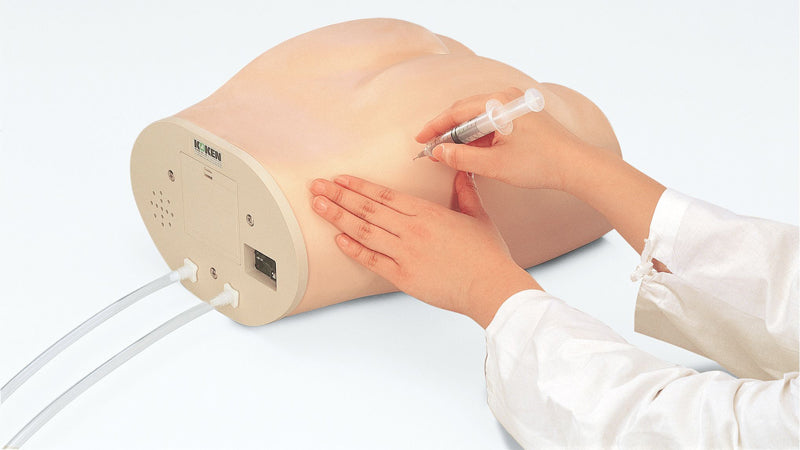

  • Users can practice a range of injection procedures, including needle puncture and infusion of simulated injection fluid (water). The injection fluid is discharged from the model via the drainage tube.

  • The model closely simulates the human body so that users can practice locating and maintaining the correct injection site and performing injections at various angles under realistic conditions.

  • The injection site components and epidermis are easy to replace.

Injection Site



  • The correct injection site is located near the center of the upper right quadrant and 1/3 the distance from the iliac crest.

  • The correct injection sphere is 5 cm in diameter, which is the approximitation of the subcutaneous panniculus adiposus and the panniculus.

  • The iliac crest, iliac spine, anterior superior iliac spine, anterior inferior iliac spine, trochanter major and pubic bone can be palpated.







Main body











Size Approx. 36(L) × 32(W) × 20(H) cm
Weight Approx. 3.6 kg




Storage case











Size Approx. 39(L) × 42(W) × 32(H) cm
Weight Approx. 4.0 kg

























Main body 1
AA size batteries 4
Spare injection sites (left and right) 1 each
Drainage tubes (left and right) 1 each
Storage case 1














































? Front panel
? Switch panel
? Battery Box
? Drainage connector (Left)
? Drainage connector (Right)
? Drainage tube (Left)
? Drainage tube (Right)
? Alarm speaker
? Injection site (Left)
? Injection site (Right)
? Alarm sensor site (Left)
? Alarm sensor site (Right)
? Epidermis
